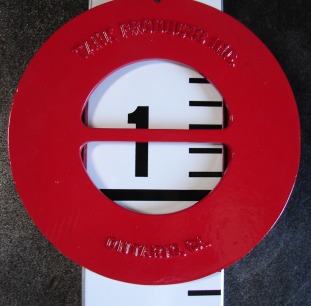

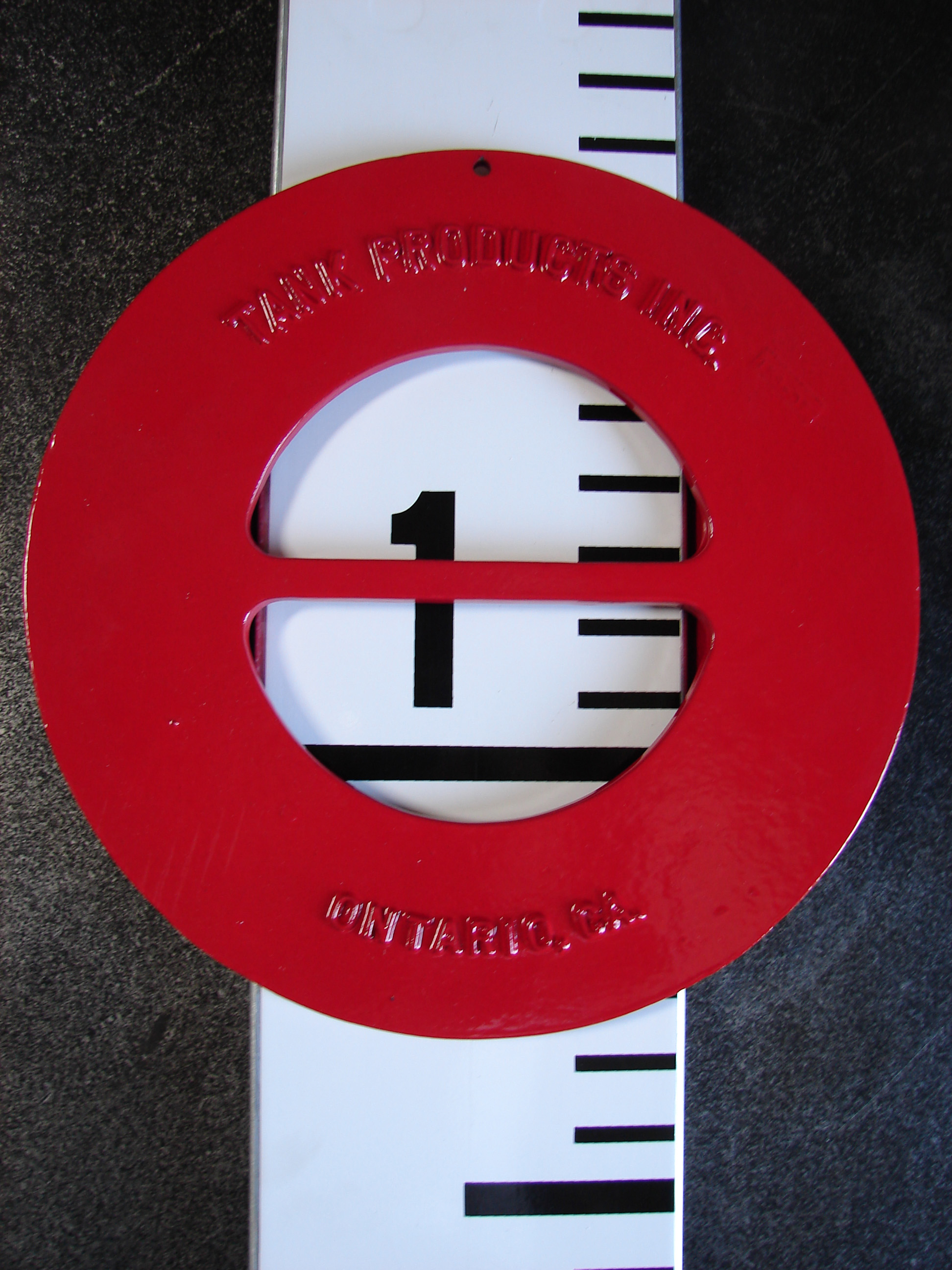

A large round "red" indicator for easy-to-read water levels and other liquid levels from long distances. This liquid level indicator moves freely up and down on the Liquid Indicator Scale for precise readings.
A top anchor is available for mounting on flat tank surfaces, 5 degree pitch for cone roof tanks and 20 degree pitch for exaggerated slope roofs.

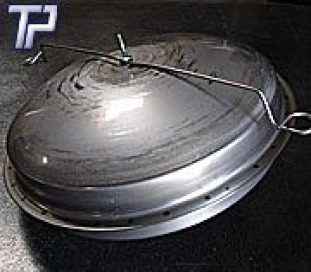

Liquid Level Float
All 316 stainless steel housing, hardware, and eyelets. 2 piece design spot welded together and filled with a proprietary, unsinkable, and nearly indestructible high density foam. Approximately, 16lbs. and 17” wide. Guide wire eyelets 20” on center.

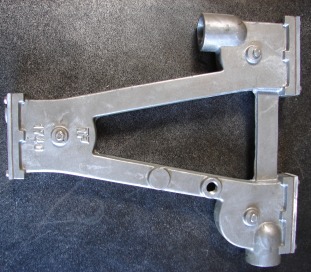

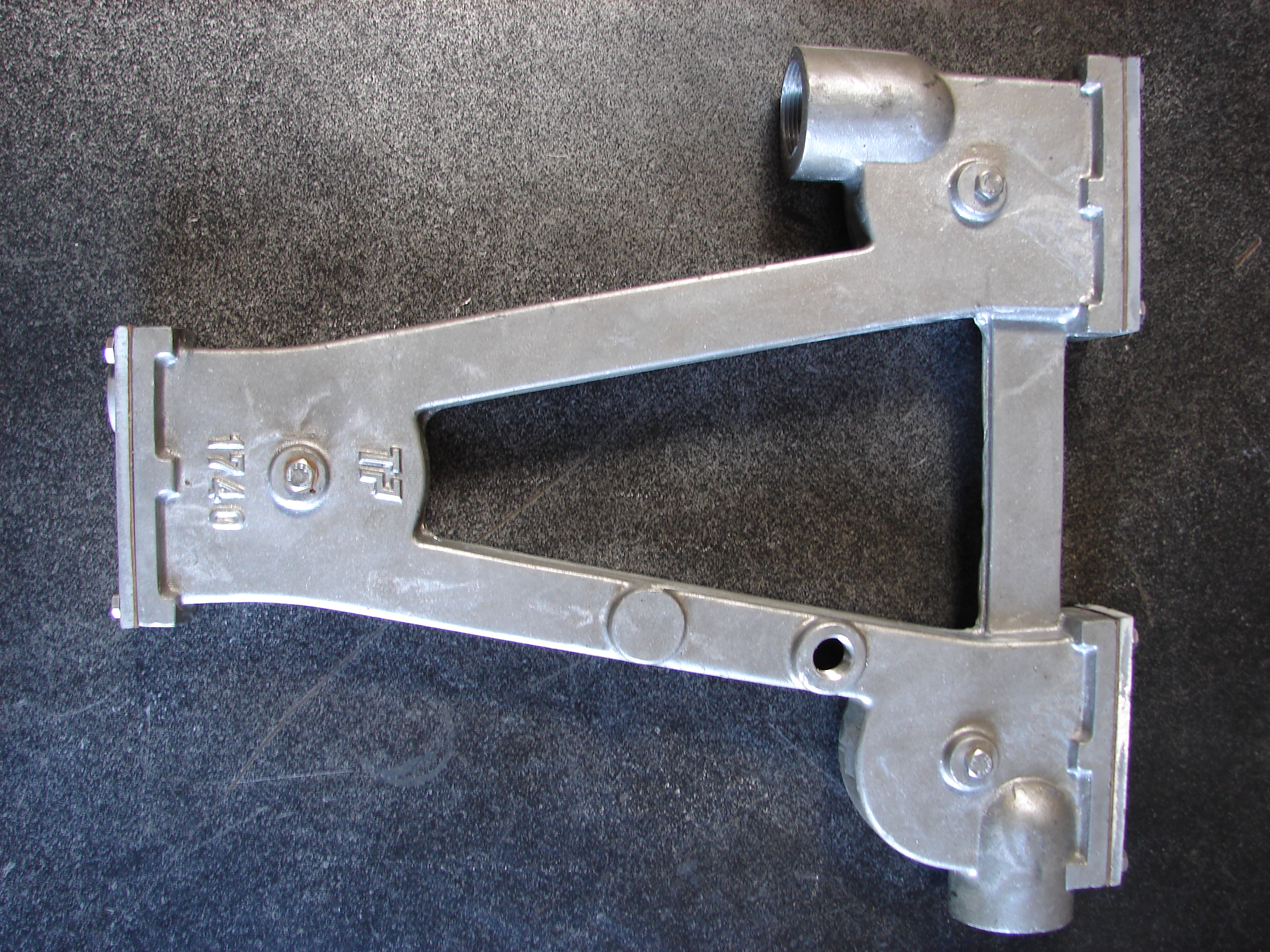

Gas Tight Oil Seal
Made of A-356 aluminum casting with all stainless steel trim and high temperature pulley wheels (400º+) for the prevention of H2S gases and other toxic vapors from escaping into the atmosphere.

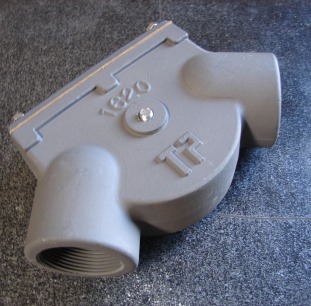

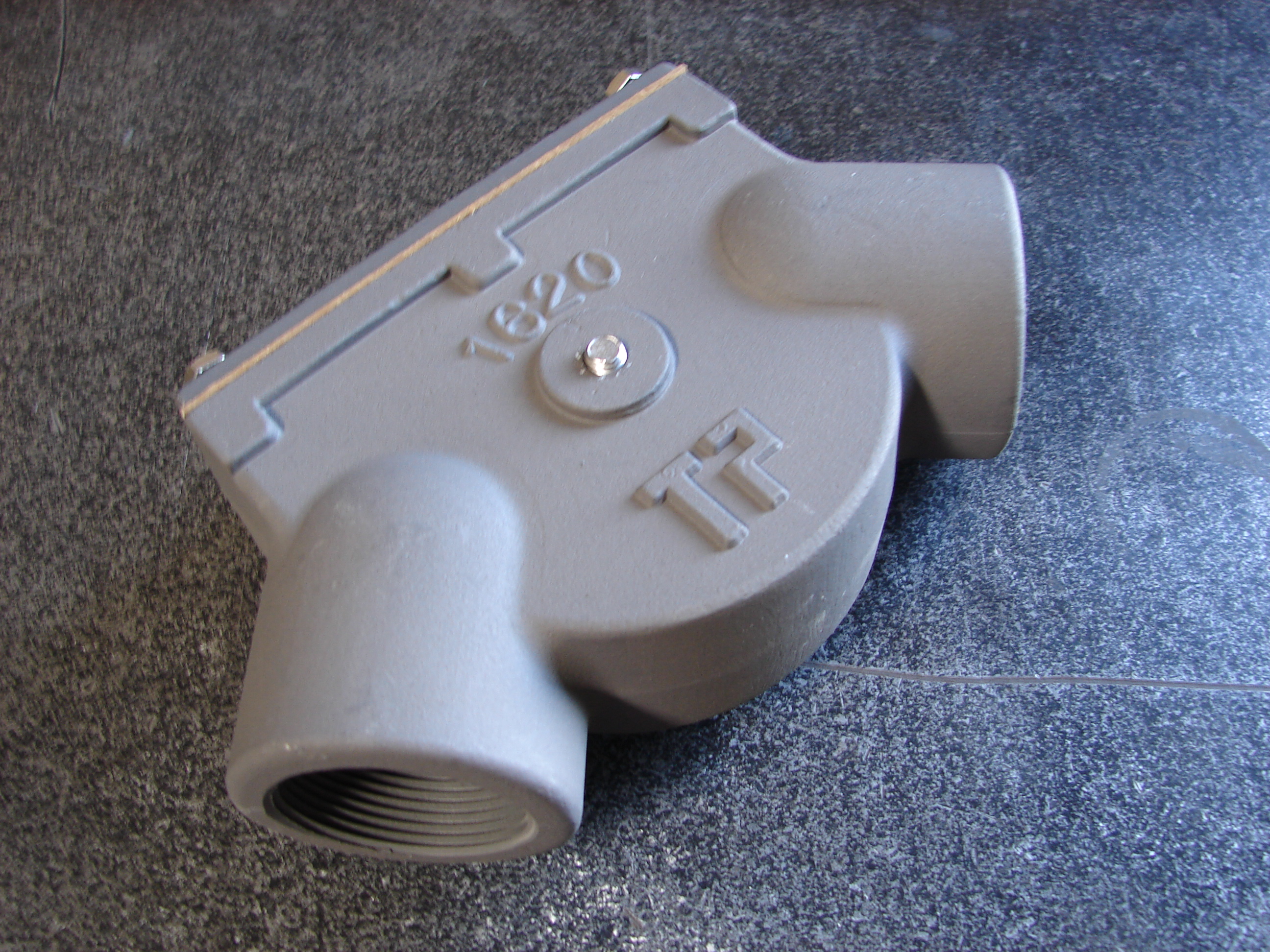

90 Degree Elbow
A precision machined elbow made of A-356 aluminum with all stainless steel trim. The high temperature wheel assembly, (as shown) is pre-mounted in the elbow.

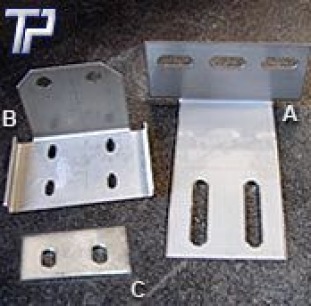

Tank Gauge Brackets
- A stainless steel bolt-on adjustable bracket with slotted holes to allow for minor extensive adjustments to clear truss or insulation on tanks.
- A stainless steel bolt-on bracket with slotted holes for normal installation.
- A weld-on adjustable bracket with slotted holes for normal installations.
